Connectors

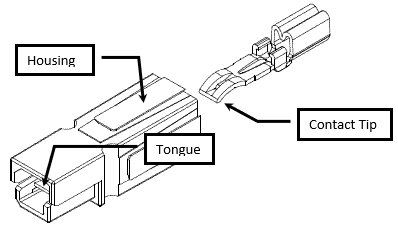

Anderson Power pole connectors are used for the probe and power supply. They are unisex connectors. The following figure shows relationship of the contact and the housing. When the contact is inserted into the housing correctly the tip of the contact will extend over the tongue in the housing. If not the contact can be pushed out of its housing.

These connectors are Tyco Electronics (TE) AMP Power Series 30, sometimes referred to as Anderson Power Pole Connectors.

Additional connectors and contacts can be purchased.

Connector Datasheet

Connector Housing Part Numbers

• Black : 1445957-2

• Red : 1445957-5

• Green : 1445957-4

• White: 1445957-3

Contacts

• 16-20 AWG: 1744042-1
